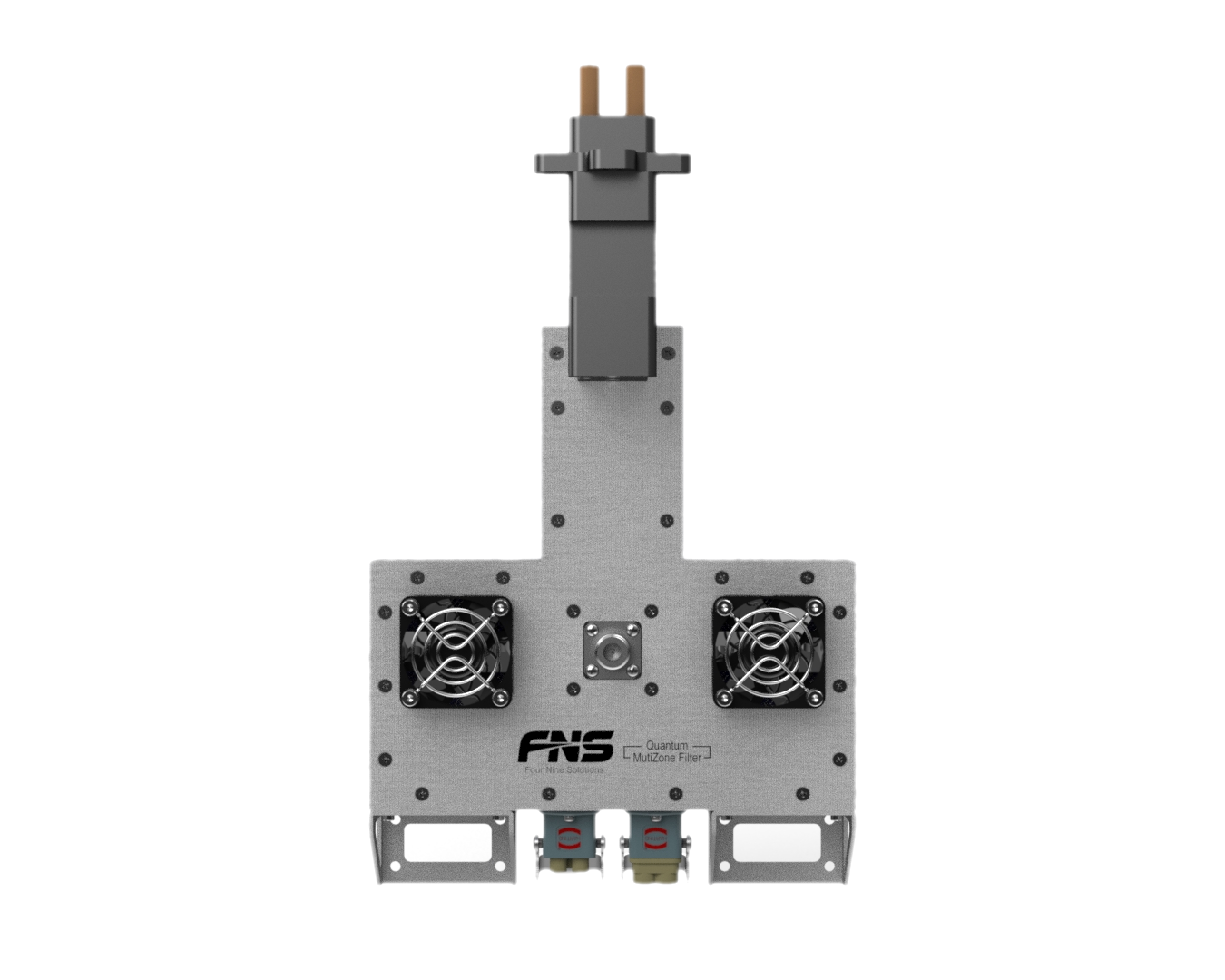

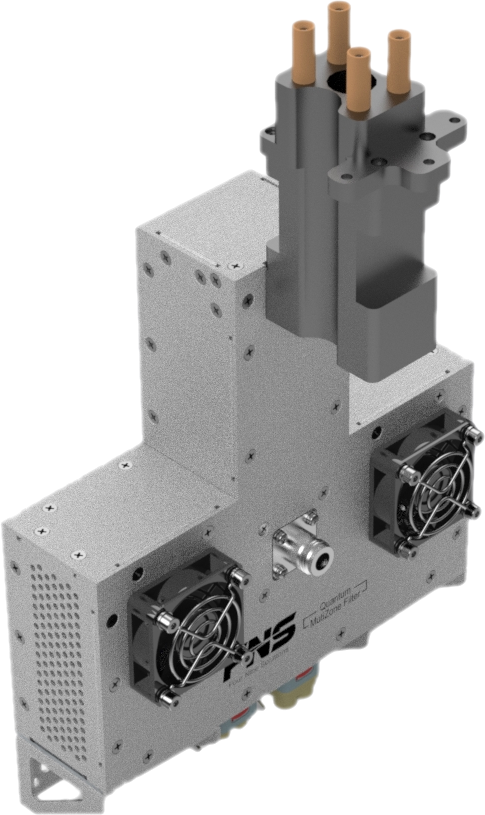

[Quantum] AC Filter
FeaturesHigh Impedance & High Rejection Characteristics
-High Quality RF Filter for TTTM(Tool To Tool Matching)
-Customized Design
-Research or Industrial Equipment
Detail
| SPECIFICATIONS [Main Filter Module] | |
|---|---|
| Parameters | |
| Frequency Range | 400KHz |
| RF Input Impedance [IZI mag] | Min. 1KΩ |
| Rejection at LF [S21] | Max. -20dB |
| Power Rating | |
| AC Current | Max. 10A |
| Operating Voltage | Max. 220Vac |
| LF Power Rating | 10Arms / 1.5KVrms |
| Connector | |
| LF Input Connector | N(Female) |
| AC Output Connector | 4.0 Pi Multi Contact Female 4Port |
| AC Input Connector [ Inner ] | 3P Male 09 12 002 2653 & 09 20 003 0301 |
| AC Input Connector [ Outer ] | 3P Female 09 12 002 2753 & 09 20 003 0301 |
| Fan Connector | 4P Male 206153-1 [1, +24VDC] [2, GND] [3, Fan1 Alarm] [4, Fan2 Alarm ] Normal Low Impedance @ Open Collector Alarm |
| Physical | |
| Size [Next Page] | Customize |
| Environmental & Cooling | |
| Operating Temperature | +5ºC ~ +40ºC |
| Cooling [Fan] | 24VDC @Max. 1A |
